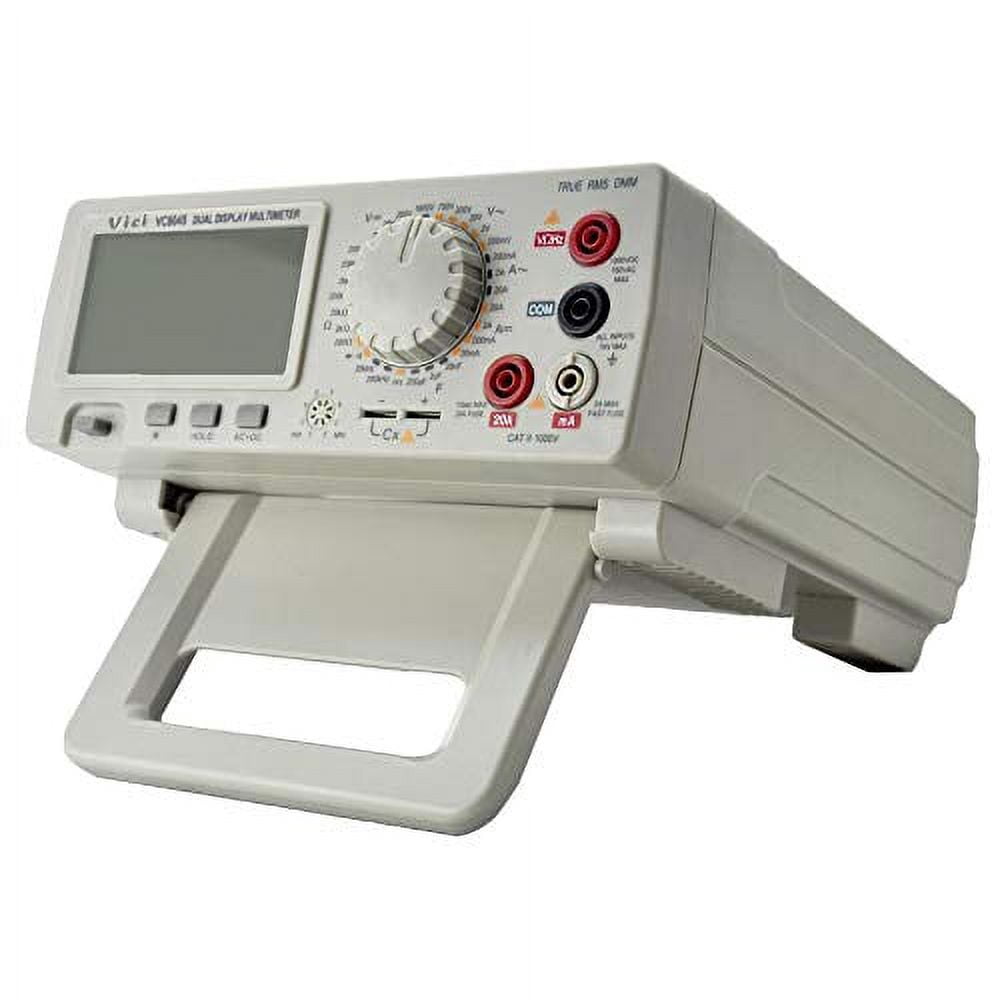

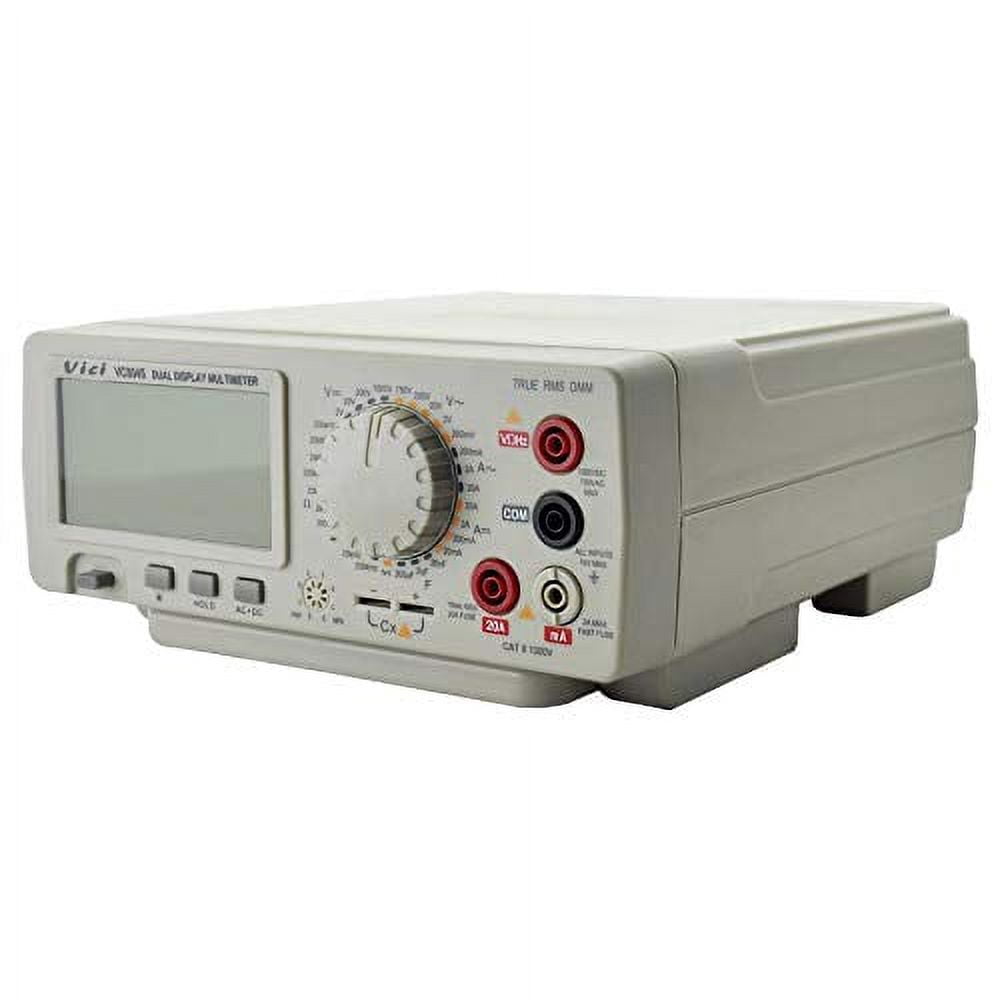

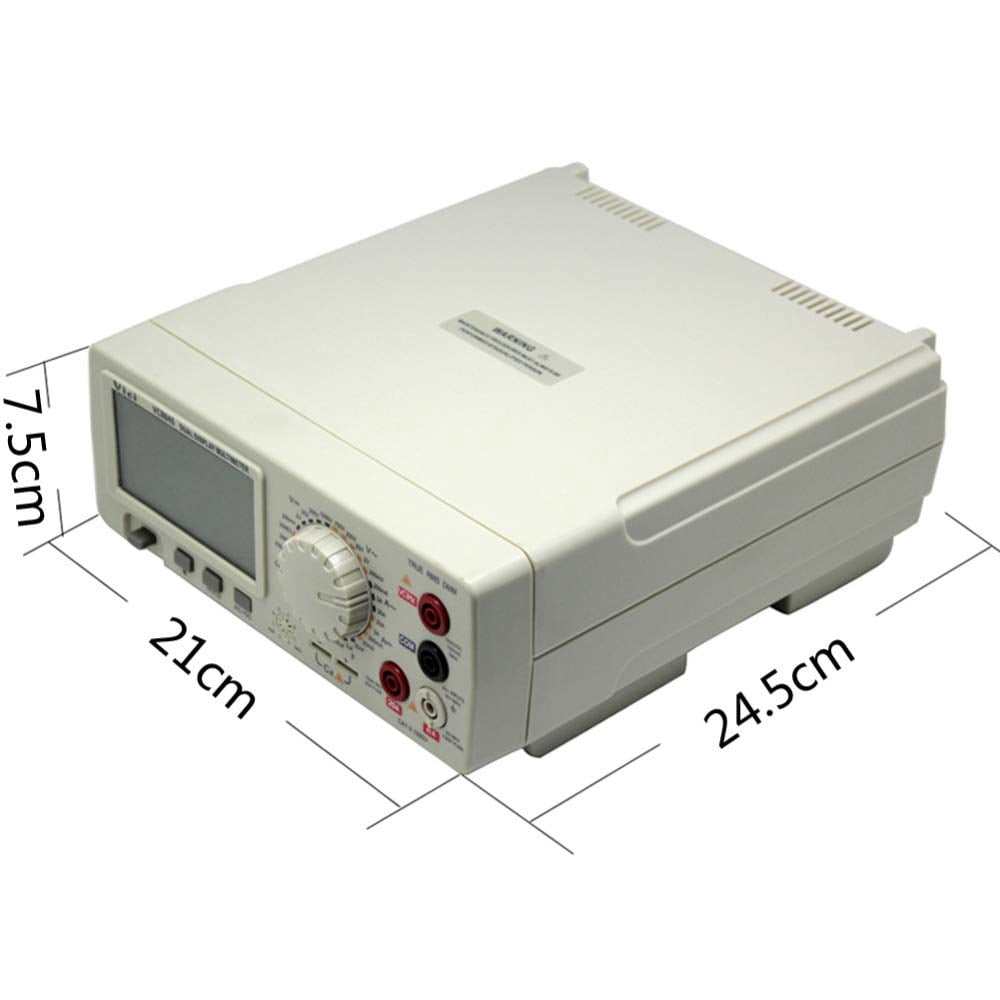

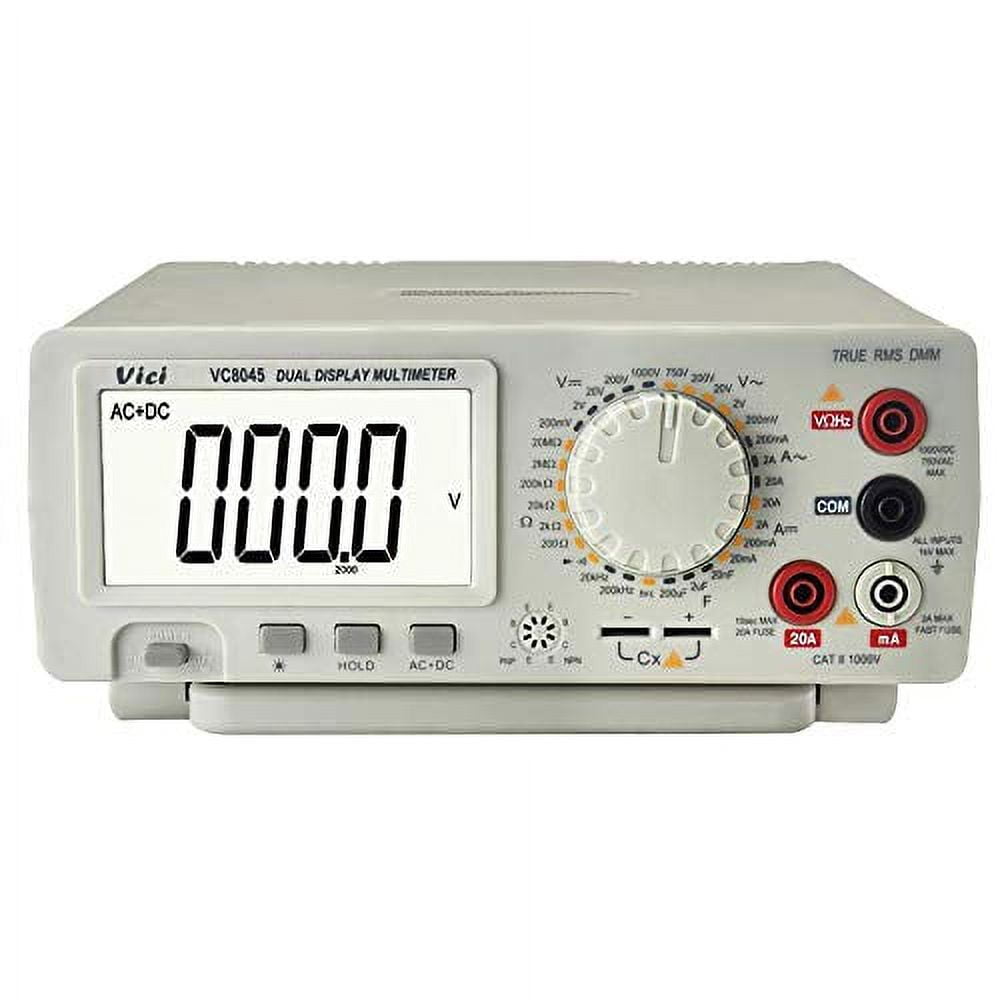

4 1/2 Digit LCD Display True RMS Bench Type Digital Multimeter with Backlight
Product details
| Management number | 230822259 | Release Date | 2026/06/18 | List Price | US$80.00 | Model Number | 230822259 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

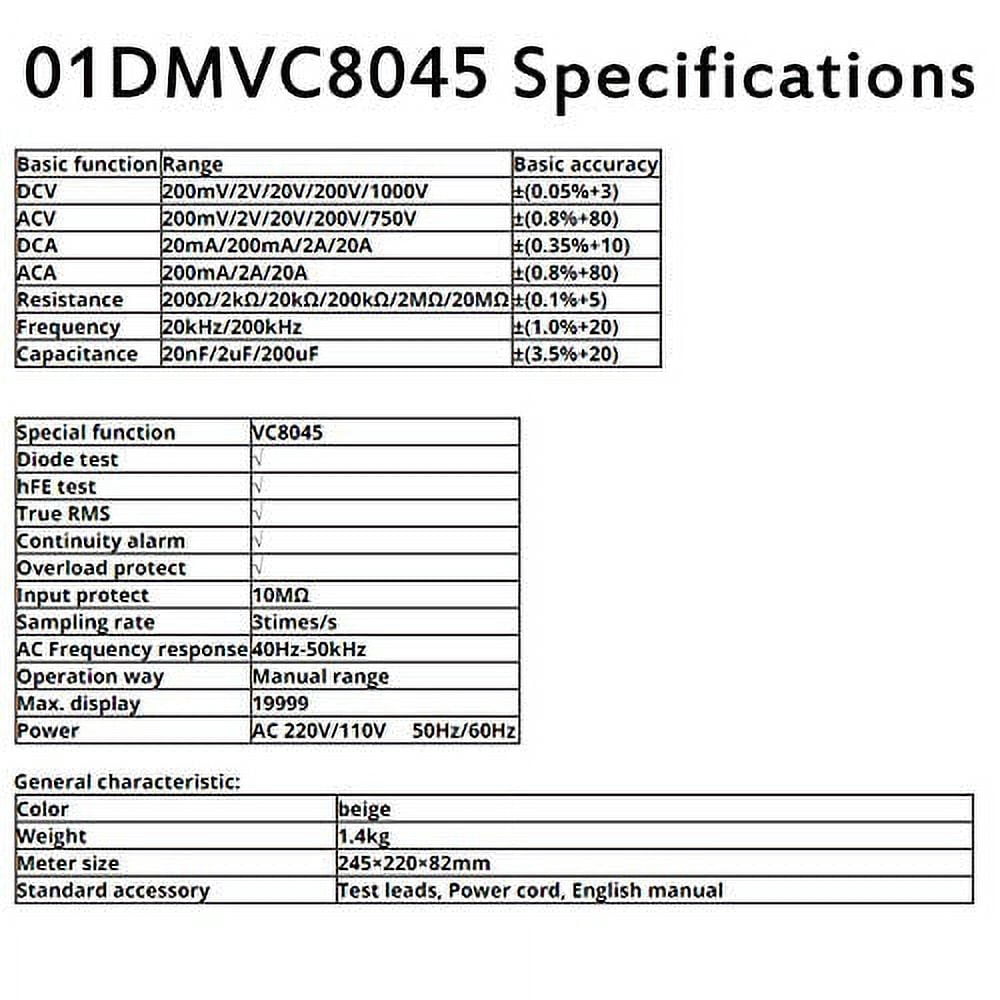

Specifications: <br>DCV Range: 200mV/2V/20V/200V/1000V, Basic Accuracy ±(0.05%+3) <br>ACV Range: 200mV/2V/20V/200V/750V, Basic Accuracy ±(0.8%+80) <br>DCA Range: 20mA/200mA/2A/20A, Basic Accuracy ±(0.35%+10) <br>ACA Range: 200mA/2A/20A, Basic Accuracy ±(0.8%+80) <br>Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, Basic Accuracy ±(0.1%+5) <br>Frequency Range 20kHz/200kHz, Basic Accuracy ±(1.0%+20) <br>Capacitance Range 20nF/2uF/200uF, Basic Accuracy ±(3.5%+20) <br> <br> Features: <br>-Diode test <br>-hFE test <br>-True RMS <br>-Continuity alarm <br>-Overload protect <br>-Input protect: 10MΩ <br>-Sampling rate: 3times/s <br>-AC Frequency response: 40Hz-50kHz <br>-Operation way: Manual range <br>-Max. display: 19999 <br>-Power: AC 220V/110V 50Hz/60Hz via switch on back of unit
- 4 1/2 digit large LCD display with backlight
- DCV, ACV, DCA, ACA, Ω, CAP, Hz, hFE, diode and continuity test function
- Max. voltage measuring: DC 1000V or AC value, resolution:10uV
- Max. current measuring: 20A, polarity automatic switch, data hold
- AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring
| Multimeter type | Digital |
|---|---|
| Measurement type | True RMS AC Current Measurement |
| Volts | 1000 V, 750 V, 220 V, 110 V |
| Brand | Electronix Express |
| Display | LCD |
| Power type | Battery |
| Has written warranty | No |
| Color | White |
